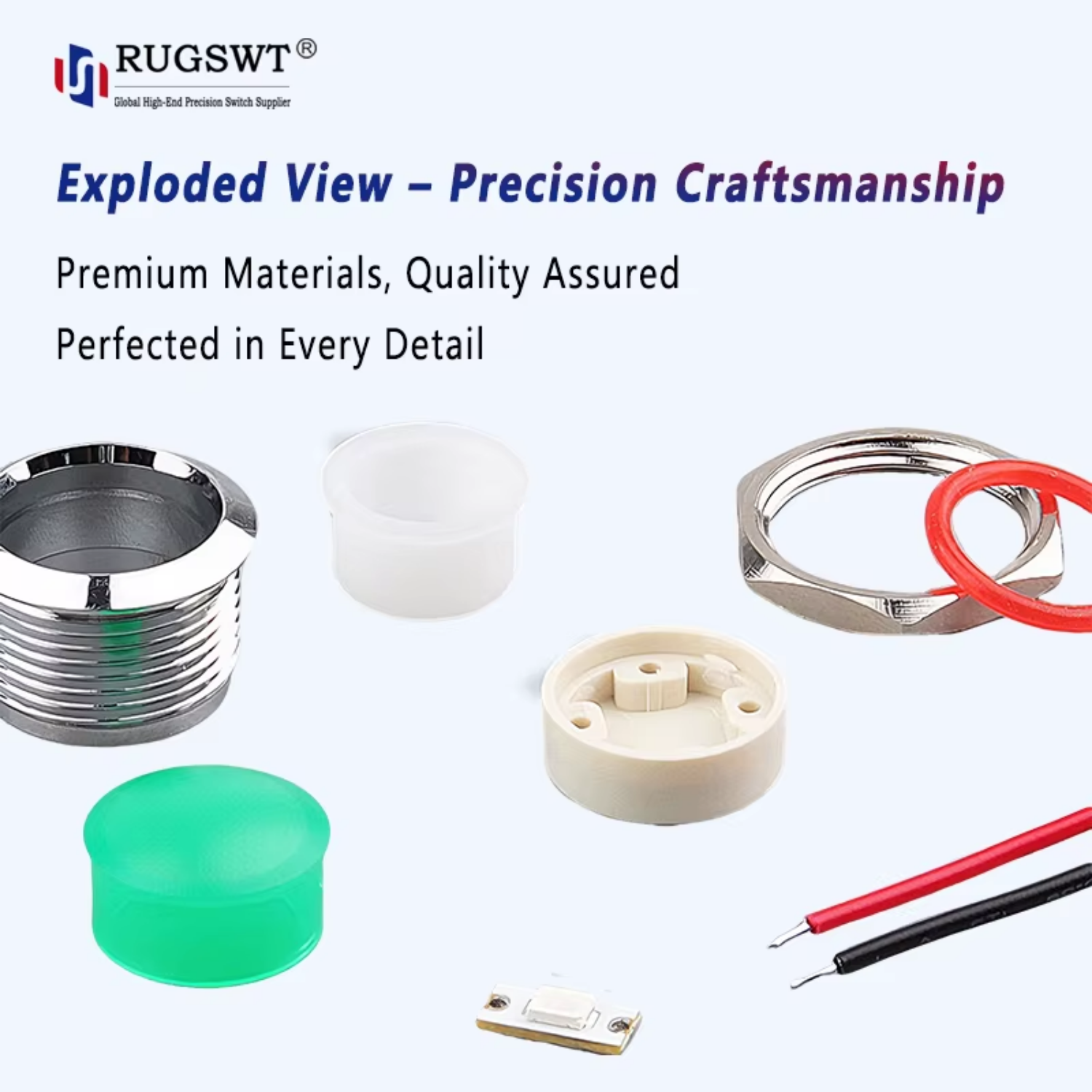

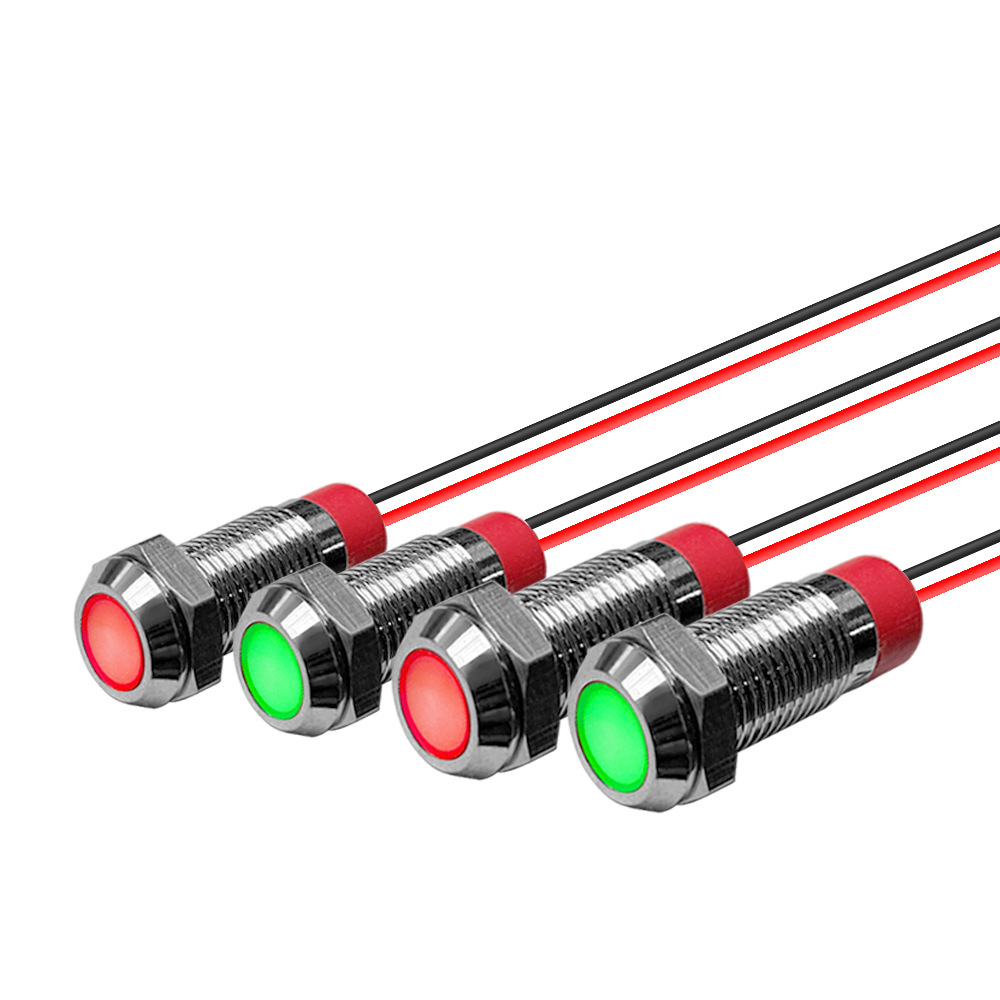

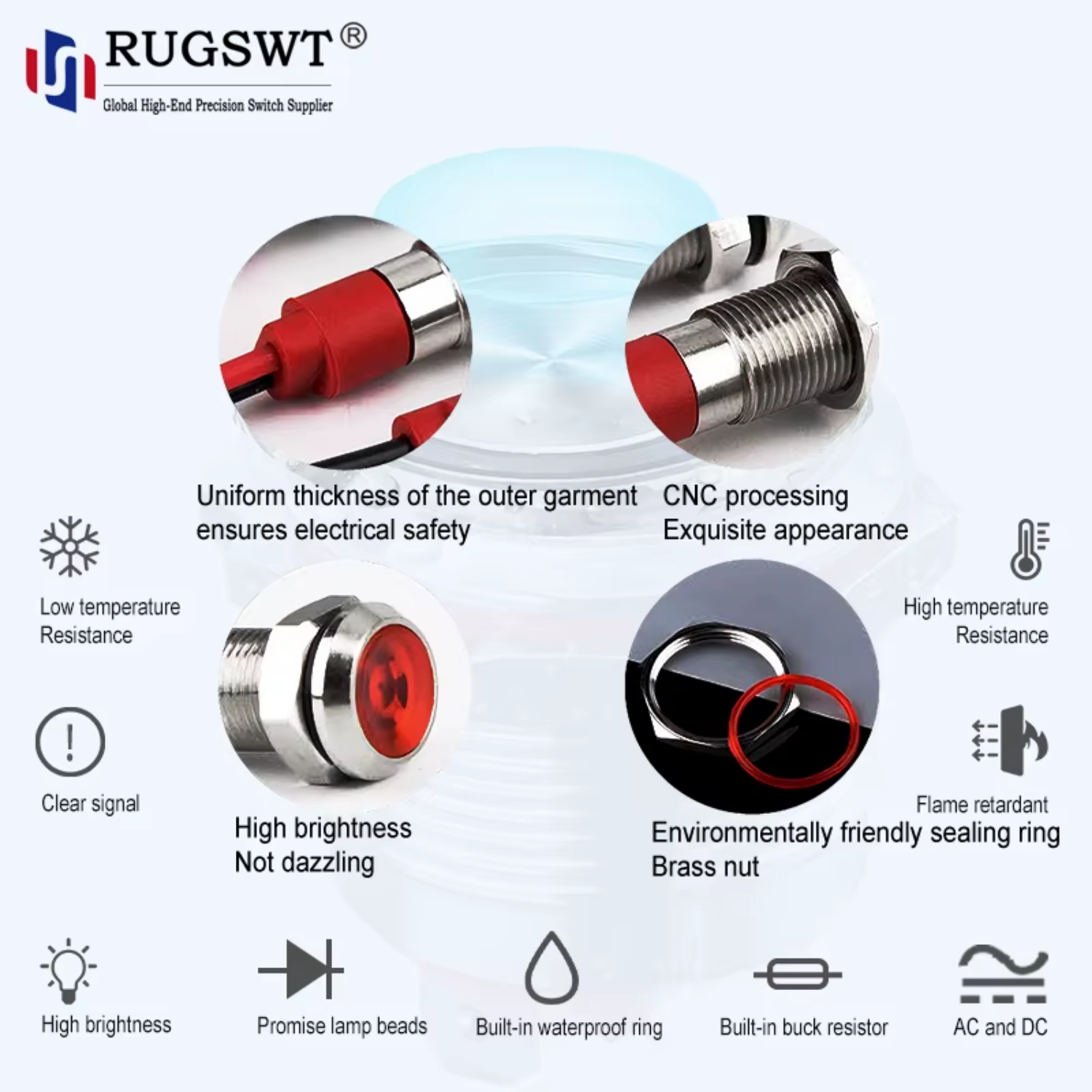

Premium metal housing processed by CNC, giving a high-end aesthetic look suitable for high-grade equipment panels.

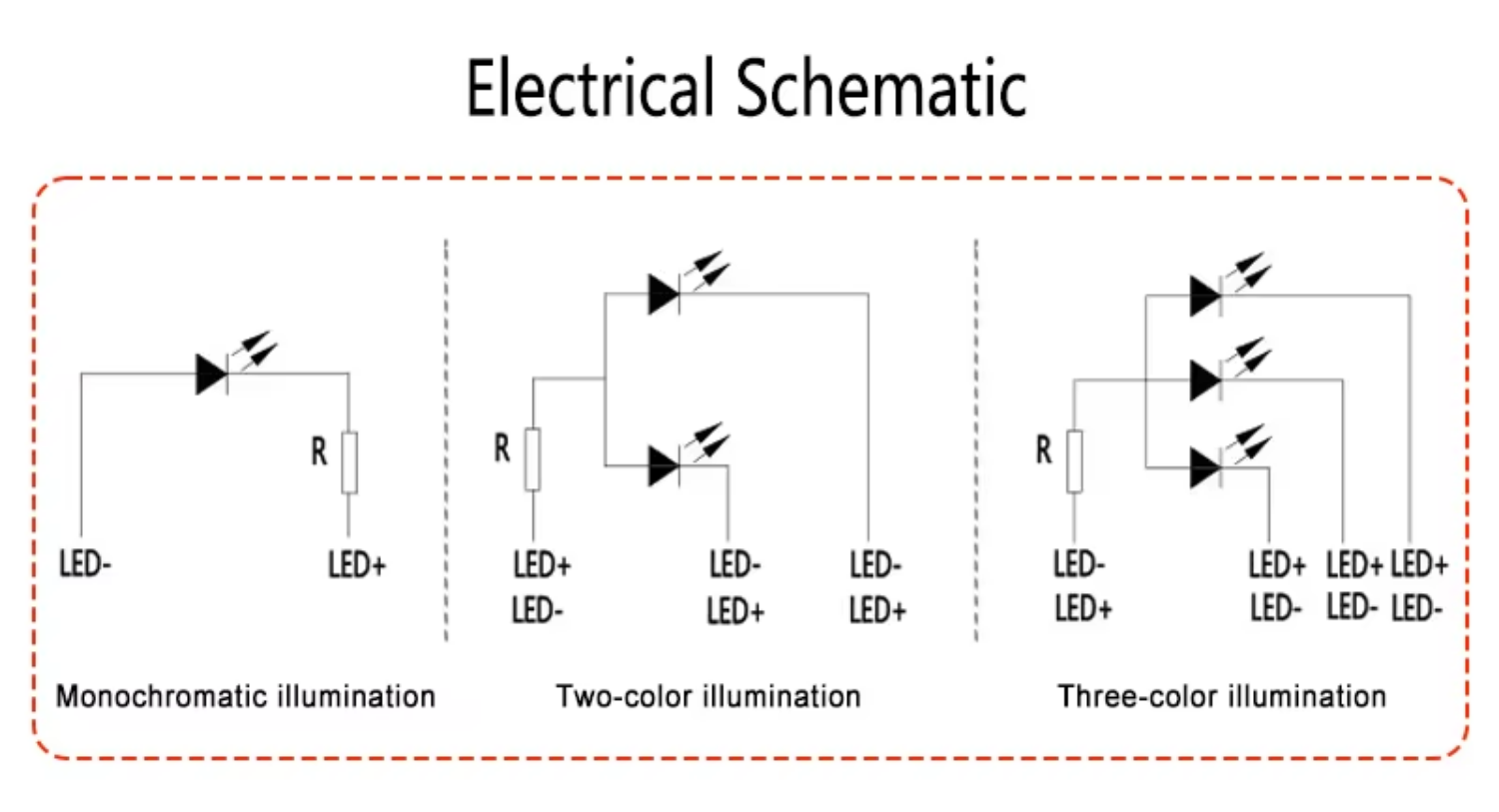

Built-in buck resistor and non-polar LED lamp bead allow seamless operation under both AC and DC power supplies without worrying about wiring polarity.
Equipped with an eco-friendly silicone sealing ring and built-in seal, ensuring dustproof and waterproof performance for extreme hot/cold environments.
Uniform thickness insulated outer jacket on pre-wired leads effectively prevents short circuits and enhances operational safety.

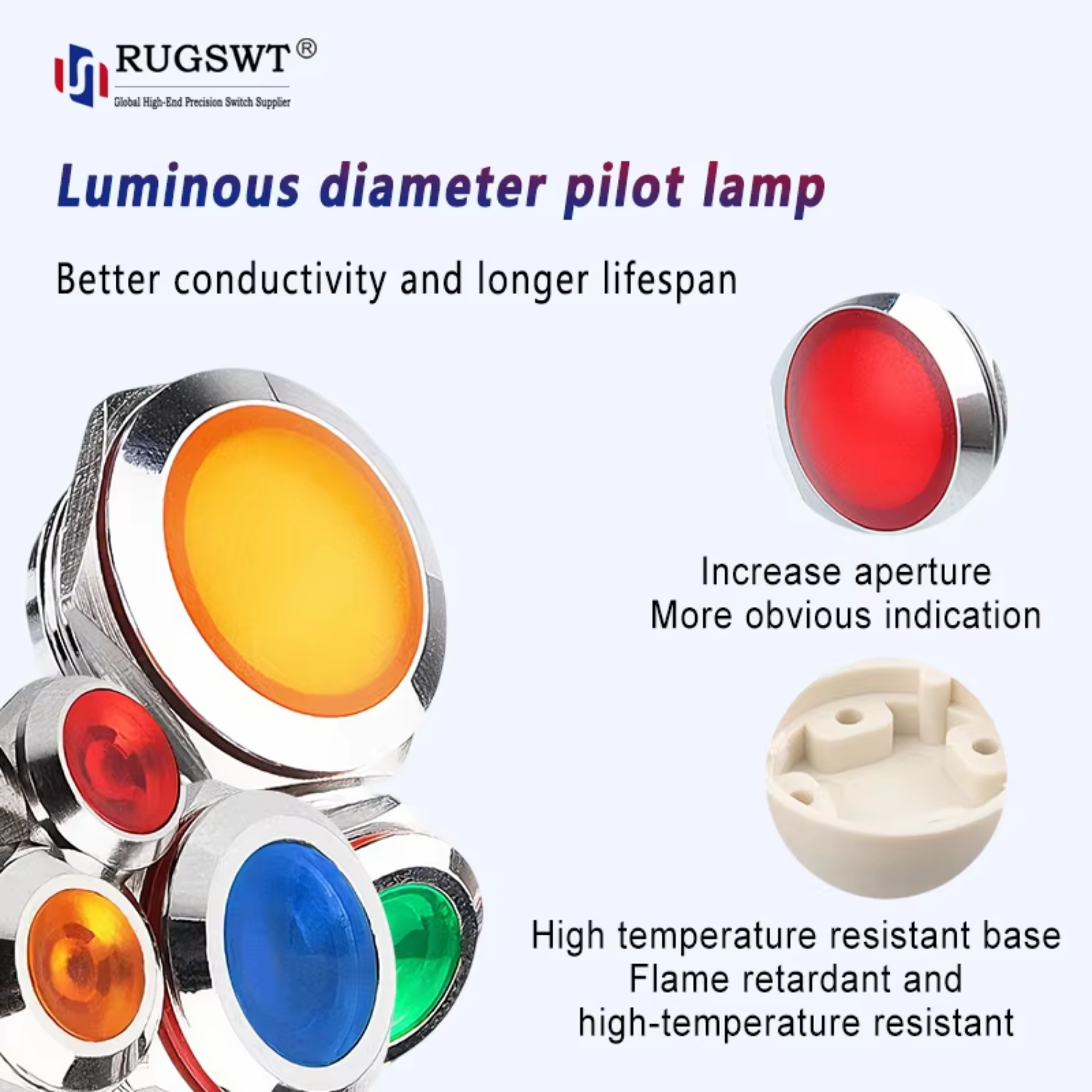

High-lumen LED light source delivers a clear signal without causing eye strain.

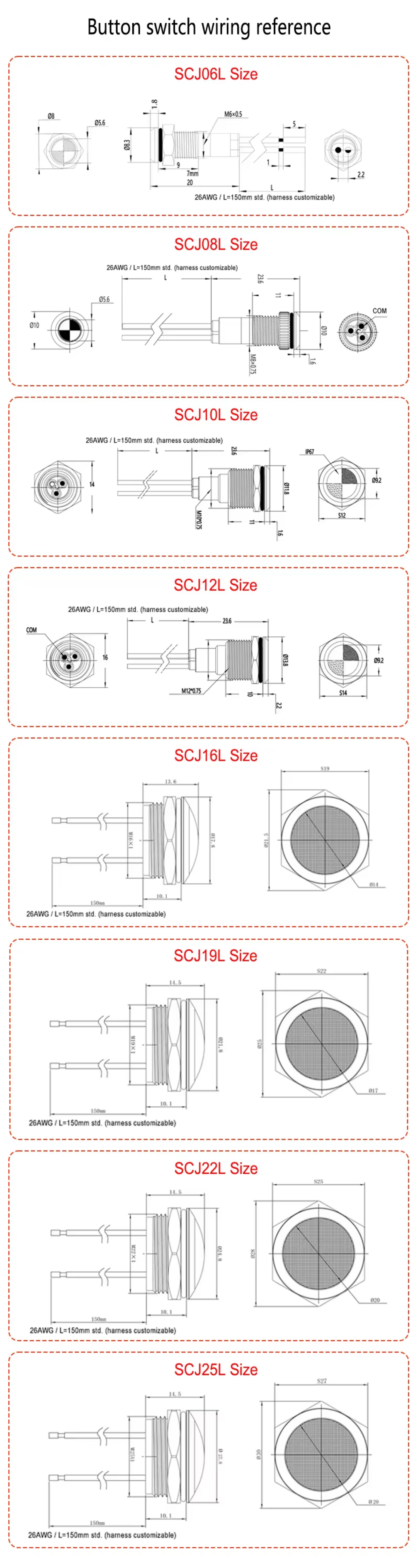

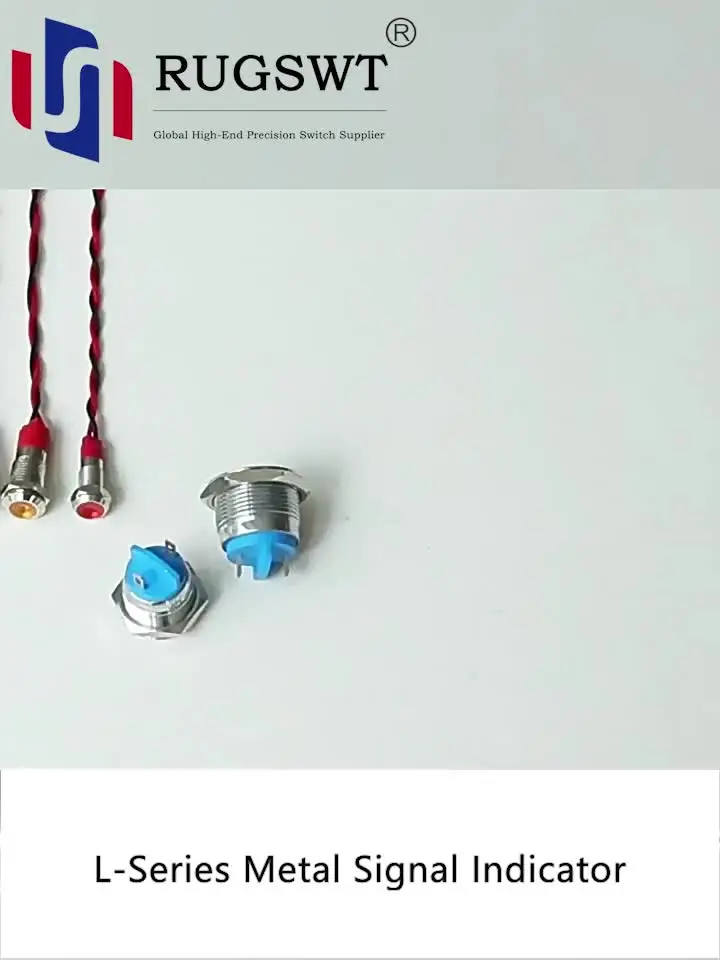

| SCJ Indicator Series Technical Specifications | |
|---|---|
| Mounting hole diameter | 6mm |
| Dielectric strength | 100MΩ 500VDC /h |
| Lamp bead current | 2mA-20mA |
| Waterproof rating | IP67 |
| Working temperature | -30°C ~ 85°C |

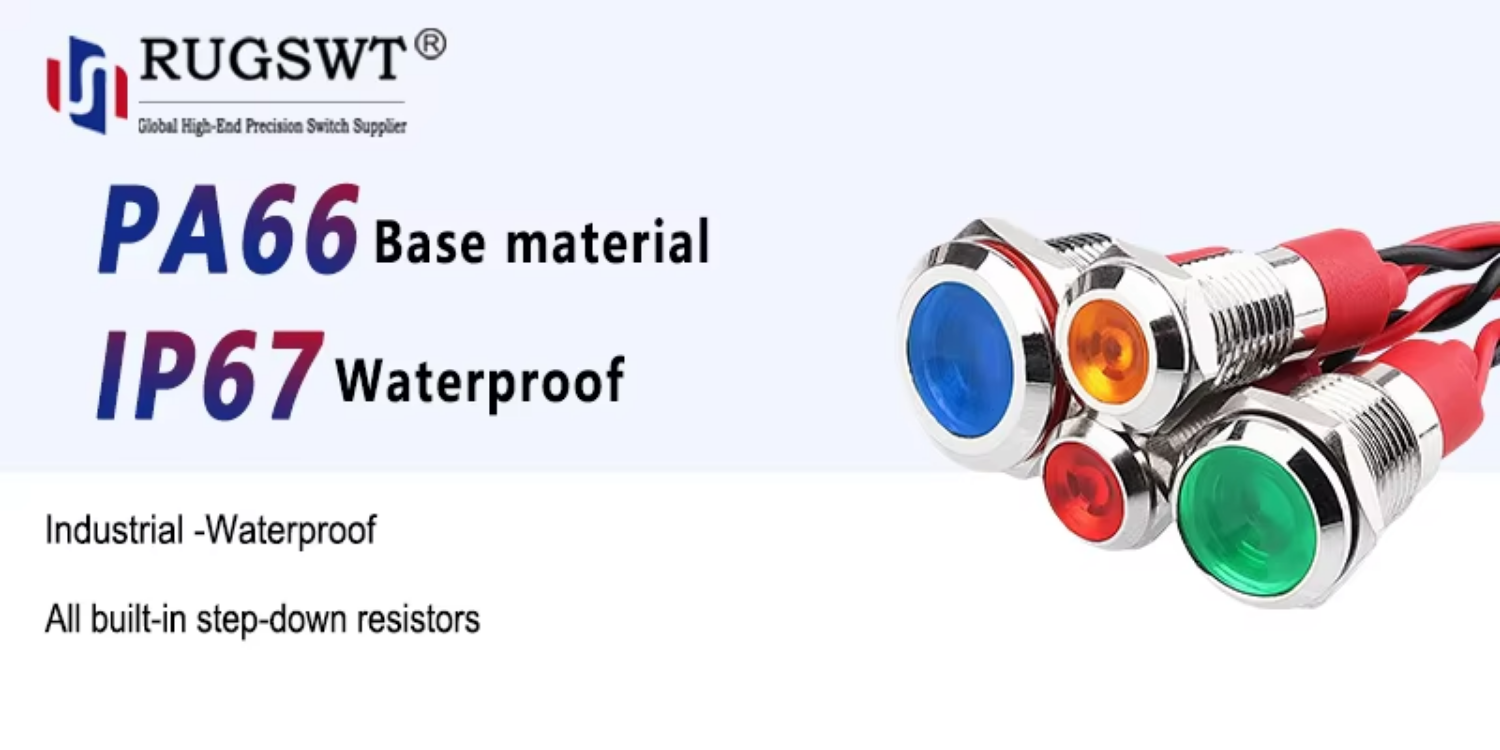

| Base material | Modified nylon PA66 |
| Lampshade material | PC |
| Lamp bead voltage | AC/DC: 3.3V, 6V, 9V, 12V, 36V, 48V, 110V, 220V |
| Pin type | Solder pin, screw terminal, wire |
| Electrical life | 40,000h ≈ 40,000 times |
| Glowing color | Red, Green, Blue, Yellow, White |
RUGSWT switches are one of the products under the SOCOJE brand, integrating research and development, design, manufacturing and sales. The company is established with the goal of targeting overseas markets as a professional industrial switch manufacturer.
Our company primarily manufactures various sizes and types of industrial control push button switches, emergency stop switches, explosion proof push button switches, piezo switches, inductive switches, key switches, float switches, LED signal light switches, intelligent temperature control instruments, intelligent digital display meters, LED warning lights, water-resistant cables, etc. These products are widely used in dozens of fields including machinery, production control, automobiles, electricity, electronics, medical care, transportation, machine tools, petrochemicals, and intelligent manufacturing.
